commutator armature paper inserting machine
armature Insulation paper Inserting machine
Product Description
It can make slot paper insertion to micro DC motor armature.
cycle time:0.4 second/slot, 7 seconds/12 slots armature
can be auto line with other step machines.
Product Specifications
armature slot paper inserting machine is the armature slot insulation treatment machine besides the powder coating machine.
| Rotor OD: | 20-60mm (customized) |
| Core length: | 12-65mm(customized) |
| Slot No.: | 8-36 |
| Max shaft length: | 180mm(customized) |
| Paper thickness: | 0.15-0.45mm |
| Paper width: | 10-35mm in roll |
| Paper feeding length error: | ±0.15mm |
| Power supply: | 220V +/-5%, 50/60Hz, 1HP,VFD:1.5KW |
| Air supply: | 0.4-0.8MPa |
| Weight: | 400kgs |
| Size: | 1170x770x2050mm |
know the mold

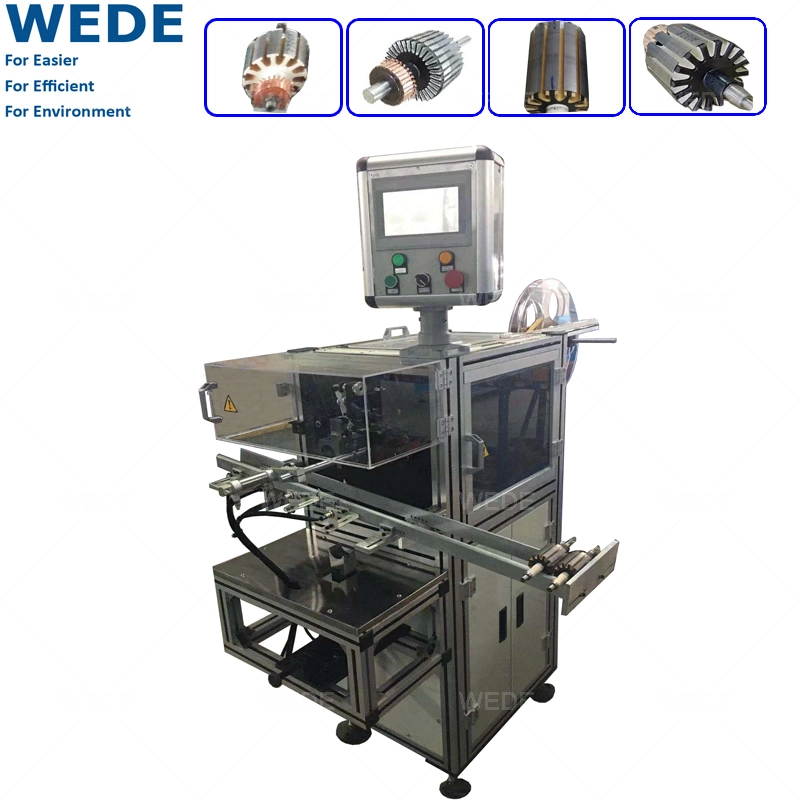

This mold is composed of the wheel sets, cutter sets, coupling, rotor holder and railway.
Product Main Steps
Paper in roll assembly in the back of the machine and feeding from there, via the wheel sets , railway to the cutter sets and into the rotor slot.
Paper inserting machine Run in its Work site
Machine with Rotors on the Trolley
The insulation paper inserting machine in apperance is simiar with the wedge inserting machine.
There difference in the function is insulation paper inserting machine is for the slot paper in the bottom before winding, and the wedge paper inseritng machine is for the slot paper at the top of coils.
There difference in the structure is mainly the output regarding the cutter set.
Product Application
