Stator Winding Production Line - Coil Winding Machine

Efficient, Precise, Reliable, Versatile

Enhance your motor production efficiency with our Induction Motor Stator Winding Production Line, featuring a Coil Winding Machine capable of single and three-phase motor winding. This high-quality equipment allows for automatic coils winding to the transfer cup and precise insertion for optimal performance. The machine's compact design and versatile capabilities make it perfect for various motor types such as fan motors, rolling door motors, pump motors, and more.

Efficient Coil Winding Solution

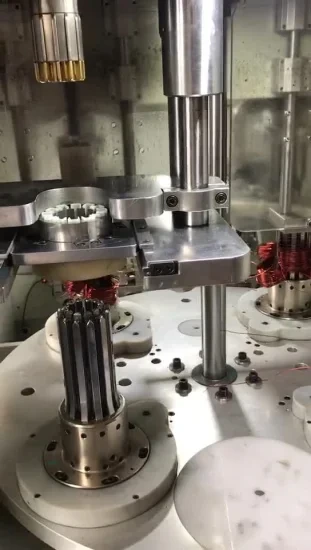

The Induction Motor Stator Winding Production Line, including the Coil Winding Machines WD-2-RQX and WD-3-RQX, offers advanced features such as auto coil winding to the transfer cup, indexing to the insertion station, and professional capabilities for 3-phase motors. With a maximum core length of 150mm, stator OD of 160mm, and compatibility with copper/aluminum wire, this equipment enables precise winding and insertion for various motor types. The integrated design of the machine allows for efficient coils winding and insertion processes, making it a valuable asset for motor production lines.

Material Introduction

The Induction Motor Stator Winding Production Line - Coil Winding Machine is constructed using high-quality materials to ensure durability and reliable performance. It is designed to handle single phase and three-phase motors, with options for 2 poles, 4 poles, and 6 poles coils used in various applications such as fan motors, rolling door motors, and pump motors. This winding equipment features auto coil winding to the transfer cup, indexing to the insertion station, and wedging insertion capabilities, making it a versatile and efficient choice for stator winding production lines.
