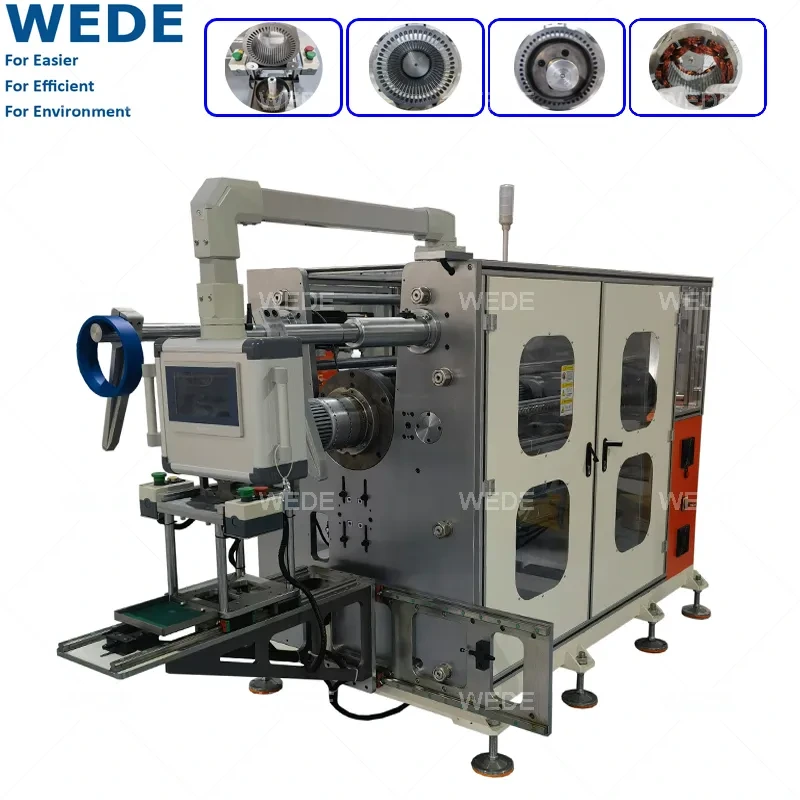

Coils and Wedge Insertion Machine - Horizontal Coils Winding

Efficient, precise coil winding

Automated Horizontal Coils Winding Machine efficiently inserts coils and wedge paper into stator slots, ensuring precise and consistent performance for high slot filling rate stator windings. With various model options available based on specific needs, this machine offers customizable winding parameters, adjustable tension control, and automatic winding functionalities for 2, 4, and 6 pole coils winding. Don't compromise on quality and efficiency with our Motor Winding Machine that guarantees seamless operations and reliable results.

Efficient Precision Coil Winding

The Horizontal Coils and Wedge Insertion Machine is designed to automatically push coils and insert wedge paper into stators, with models like WD-2021-WQX for horizontal type applications. These machines have standard and extended sizes for different stator dimensions, offering features like adjustable winding tension and continuous/discontinuous winding options. With power supply details of 380V 50/60Hz and 5KW power, these machines cater to copper wire and aluminum wire winding needs efficiently.

Material Introduction

The Horizontal Coils and Wedge Insertion Machine is constructed with durable materials to ensure stable and efficient performance. The machine features high-quality components that enable precise coil insertion and wedge placement in stator slots. With a focus on reliability and longevity, this Coils Winding Machine is designed to operate seamlessly for extended periods, making it an essential tool for motor winding processes.
